CLM SERIES

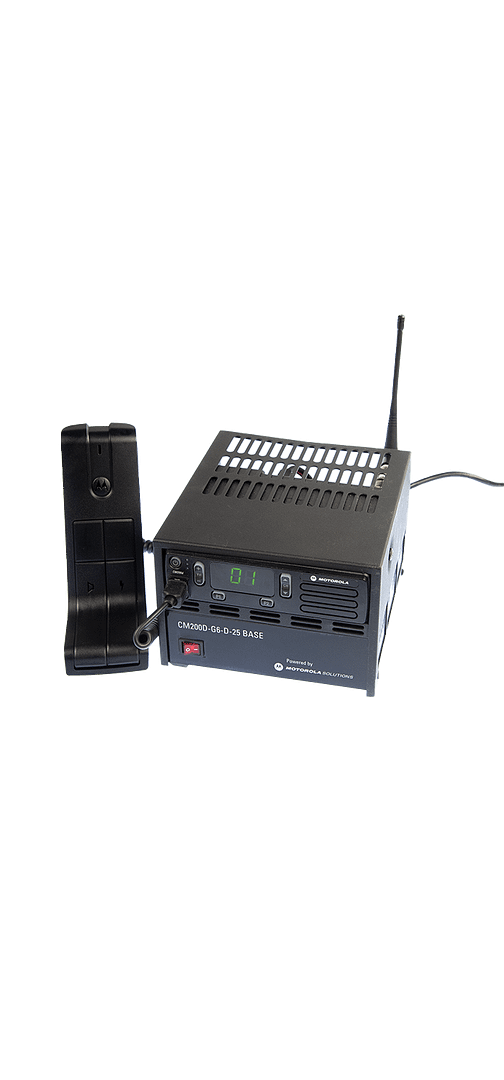

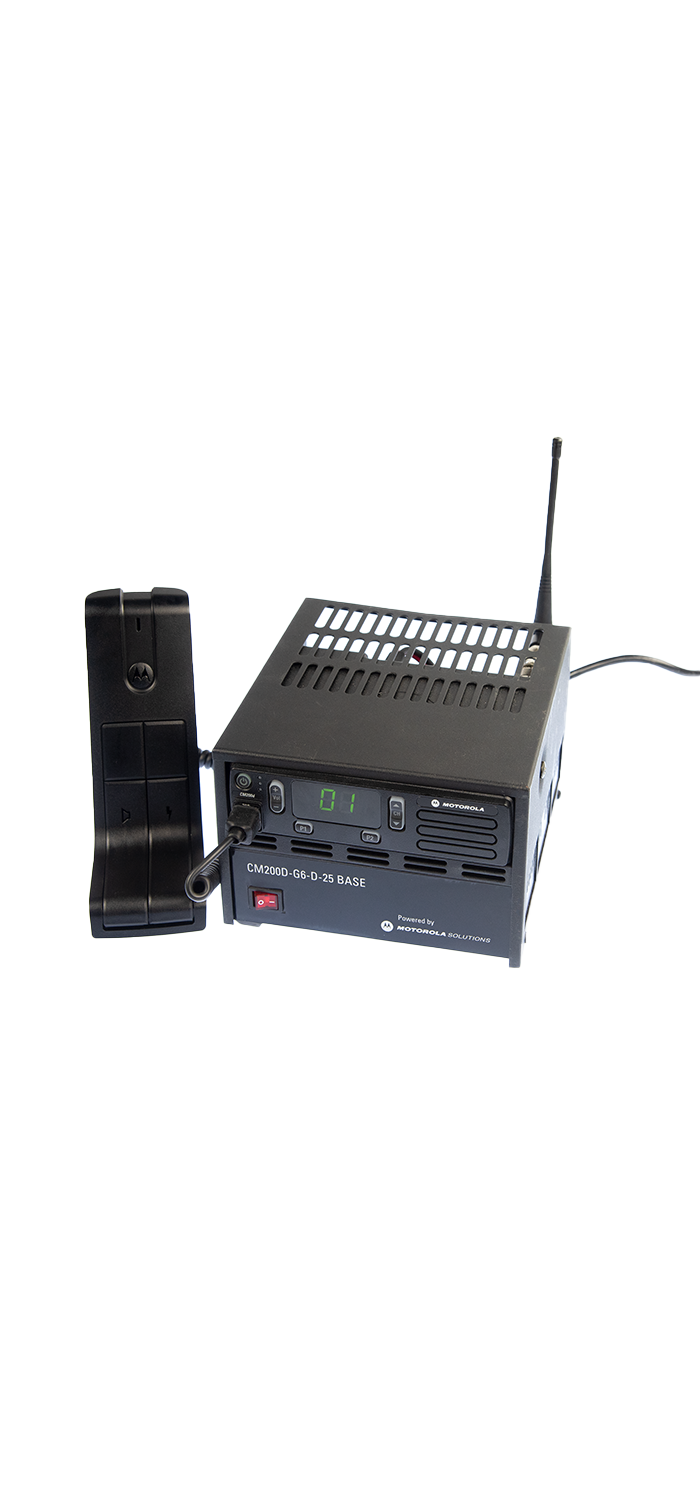

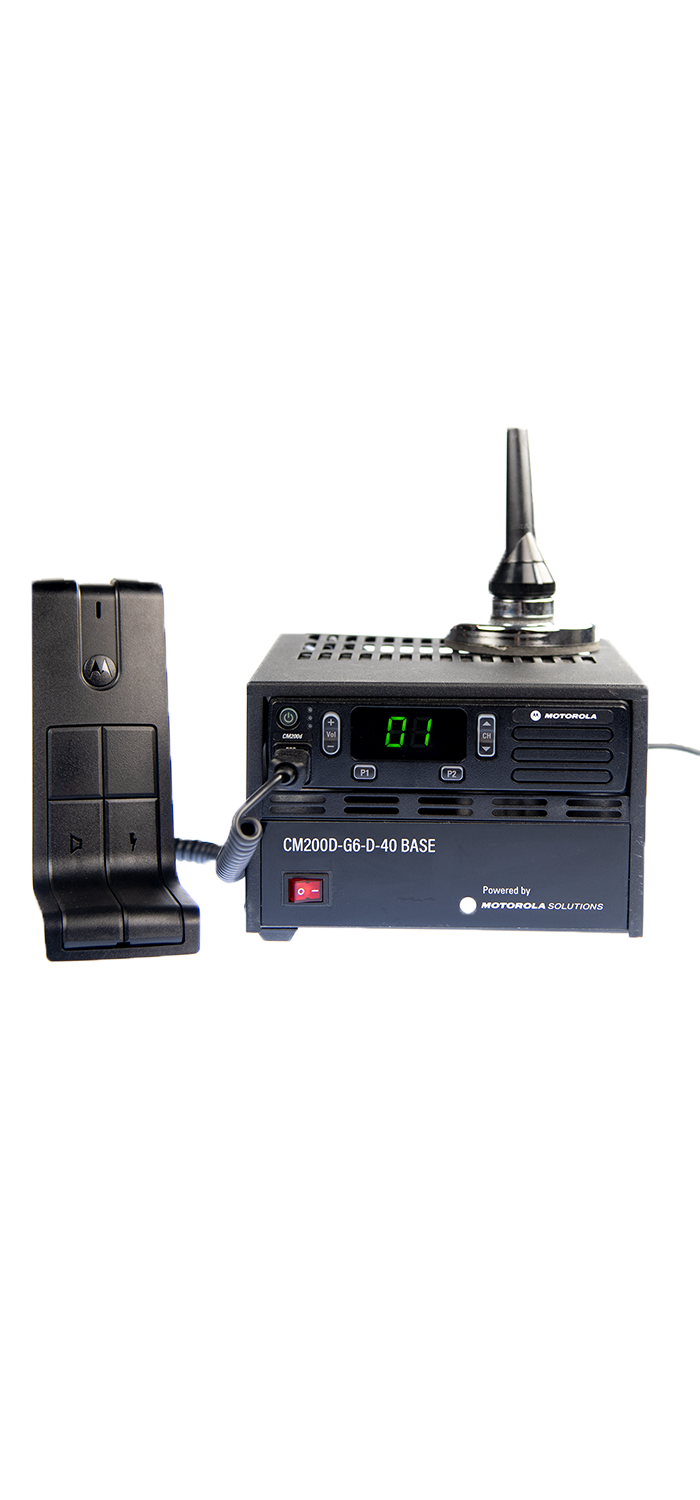

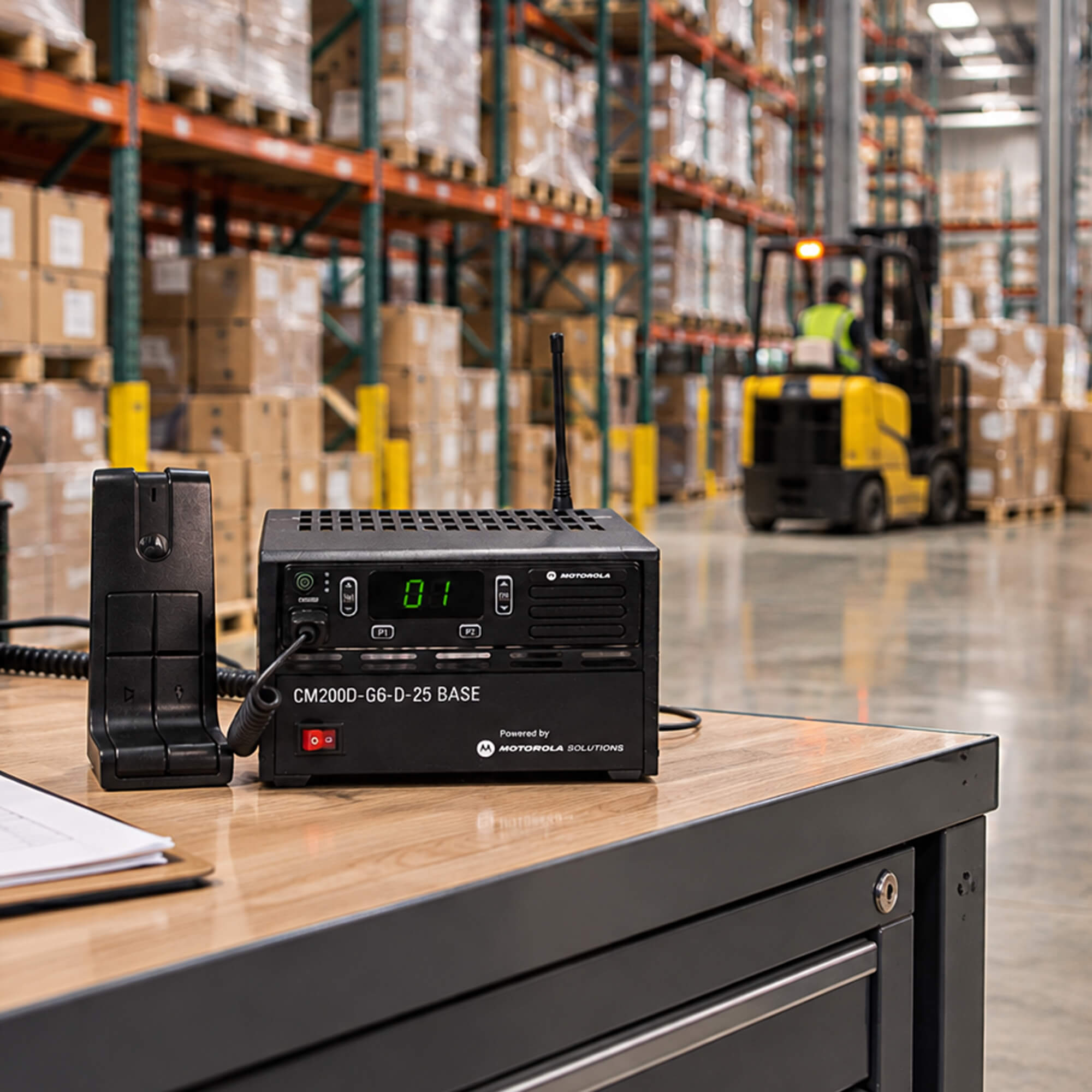

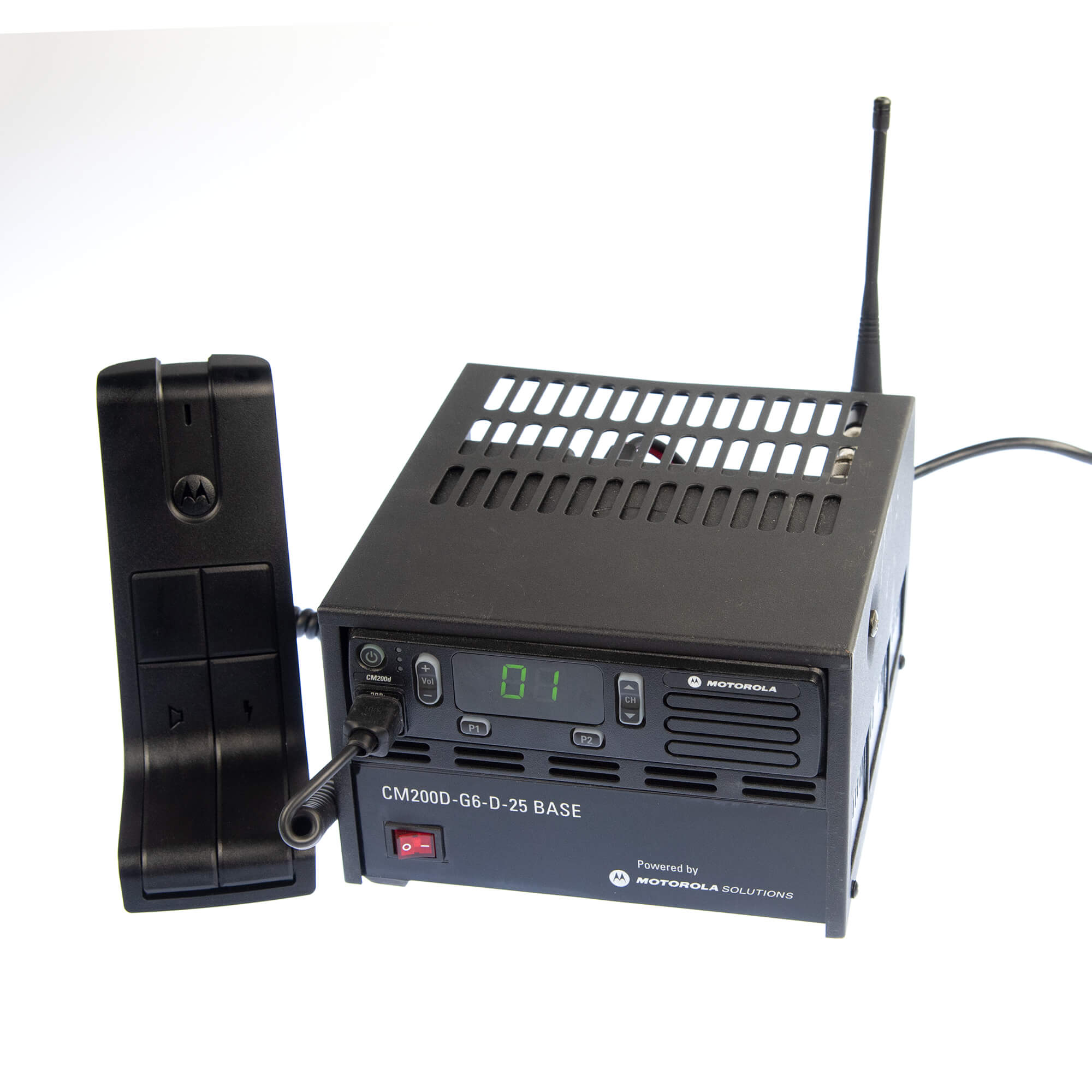

CM200d

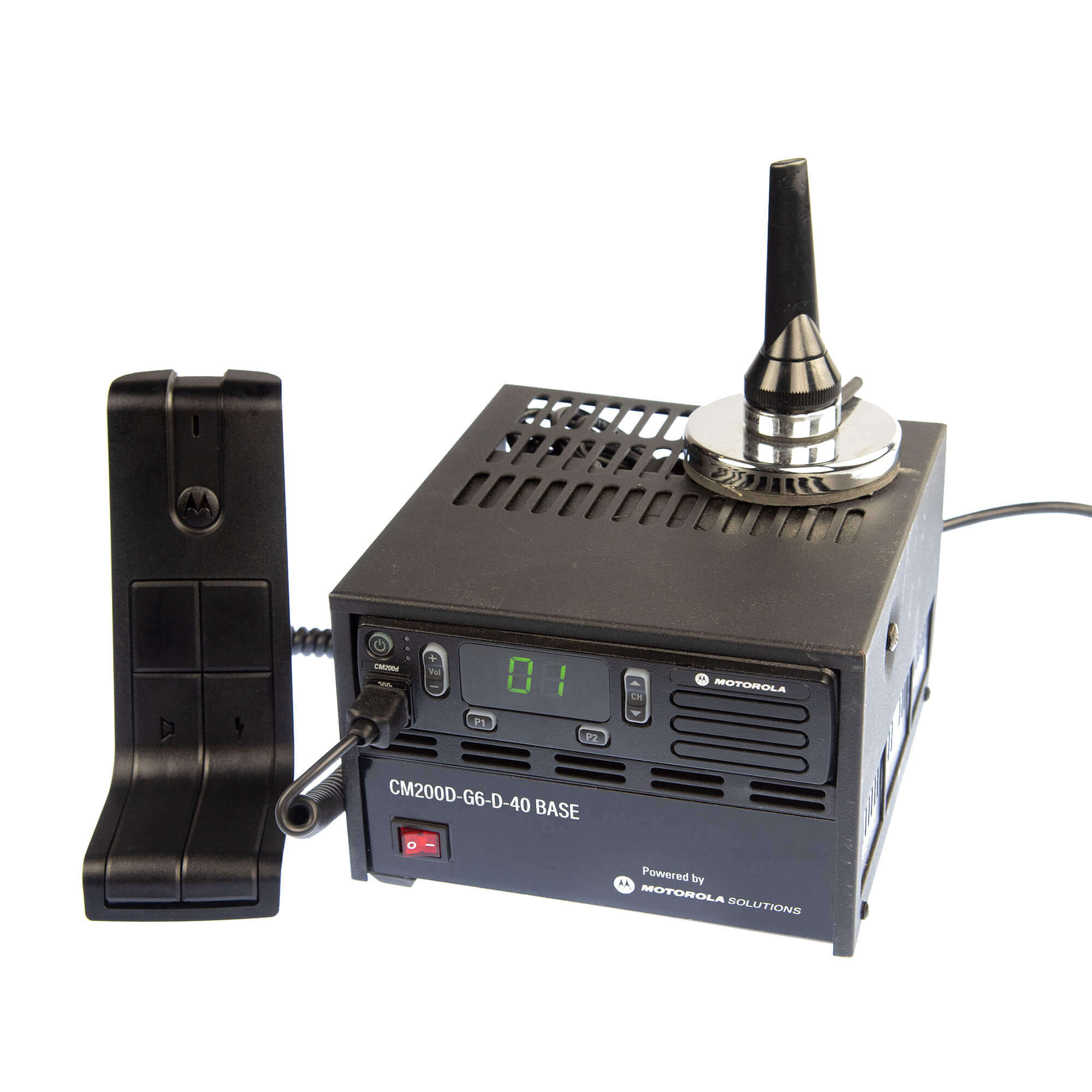

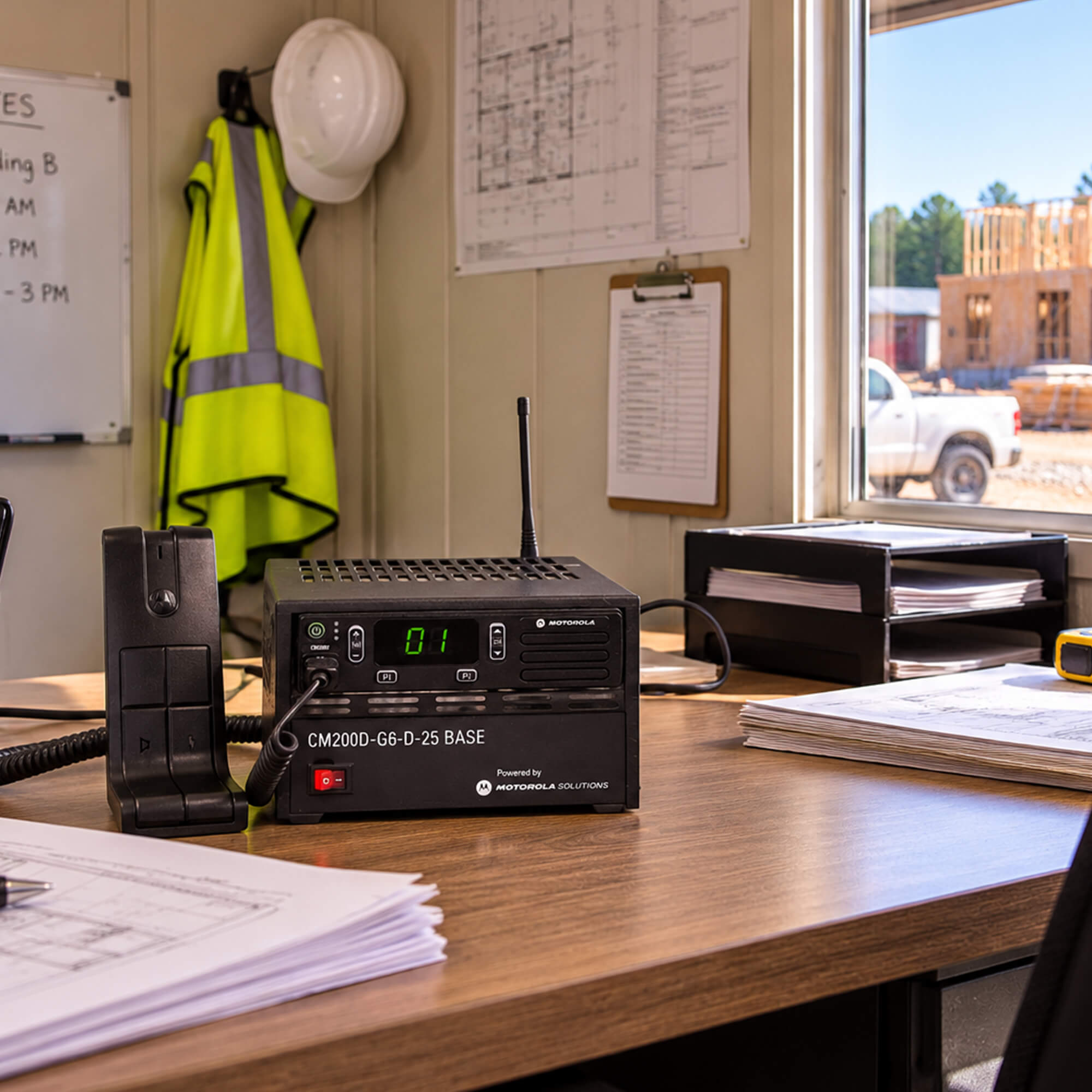

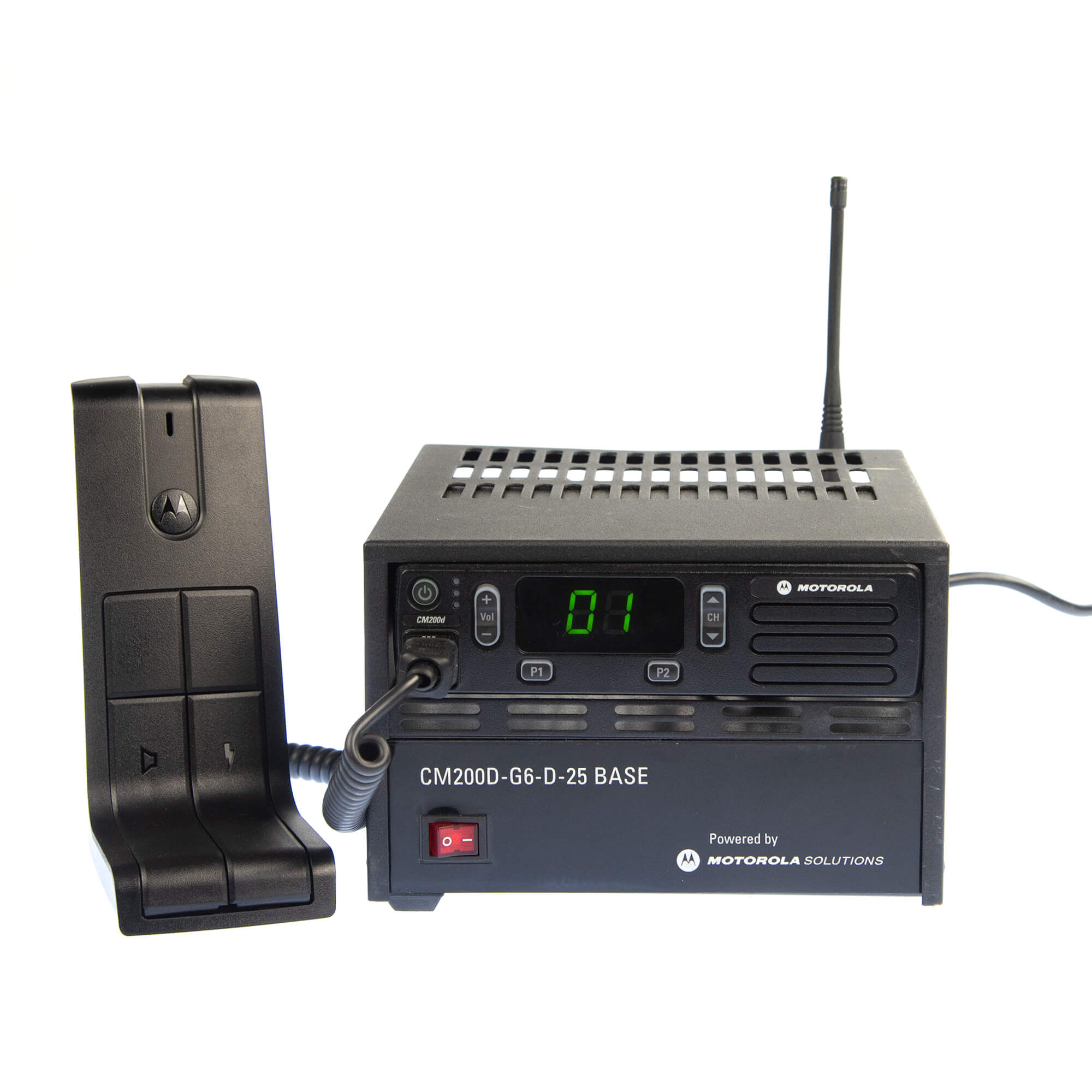

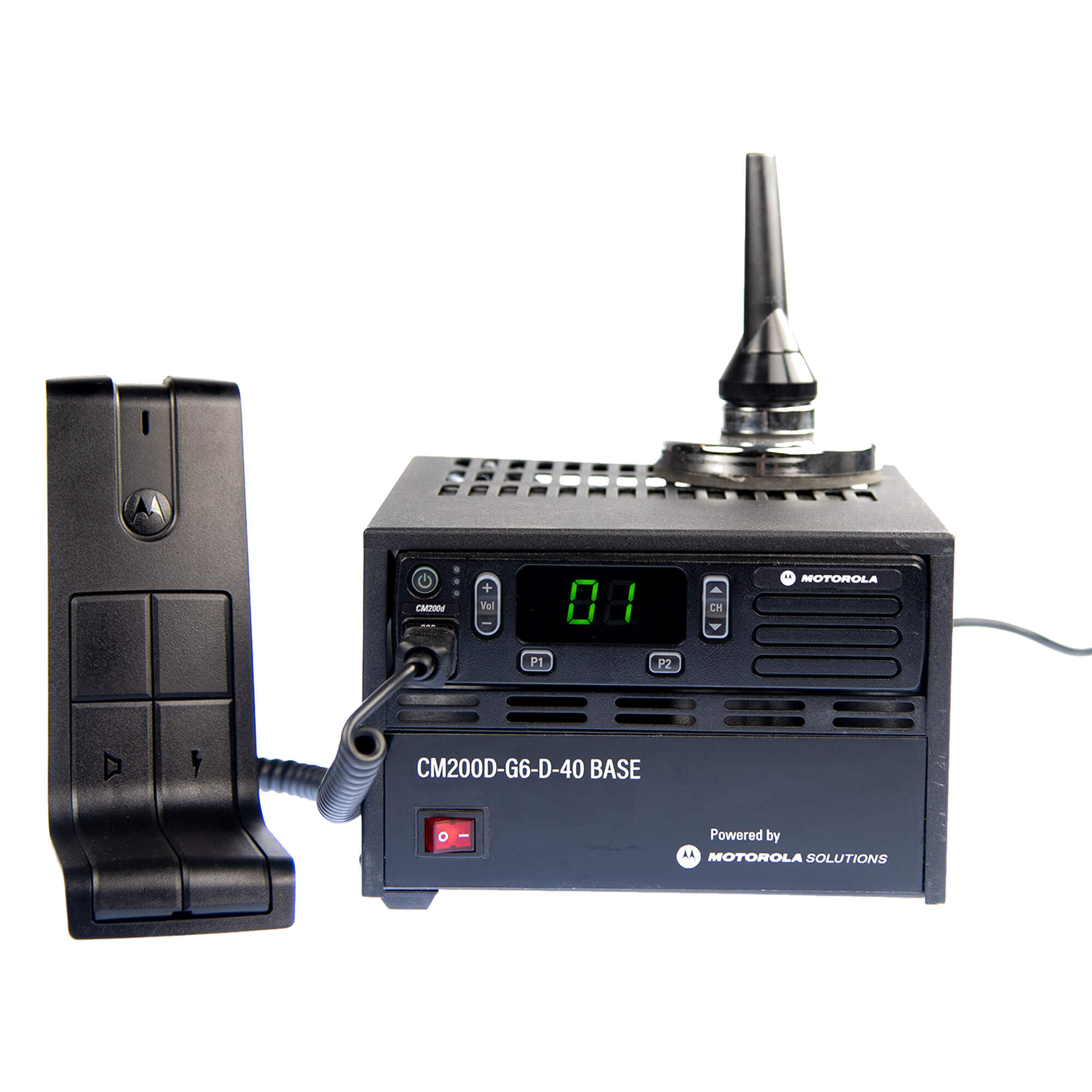

Base Station
Available in either VHF or UHF, this digital and analog mixed-mode base station delivers up to 45 watts of power in VHF or 40 watts in UHF, providing reliable communication and flexible coverage options. Supporting up to 16 channels with full custom programming, the CM200d can be purchased as an analog-only radio with the option to upgrade to digital functionality later. MOTOTRBO digital capabilities include All Call, Group Call, and Individual Call, while multiple scan options and six programmable buttons provide quick access to essential functions.
Built for demanding environments, the radio meets MIL-SPEC 810 and IP54 specifications. The base station package includes the CM200d mobile radio, one activated channel, antenna, desktop cabinet, power supply, desktop microphone, user guide, and warranty card, with a standard 2-year warranty and optional 3-year extension.
- Digital & Analog mixed mode radio
- Available in UHF 25 watts and 40 watts
- Available in VHF 25 watts and 45 watts
- Up to 16 Channels
- Custom Programming Available
- Can be purchased in analog ONLY with available digital upgrade option after purchase
- Meets MIL-SPEC 810 & IP54 specifications for demanding environments
- MOTOTRBO digital with All Call/Group Call/Individual Call
- Multiple scan options
- 6 programmable buttons
- Standard 2 Year Warranty (3-5 Year Optional)
- Height: 6.0″
- Length: 12.75″
- Width: 9.25″
- Weight: 8.2lbs
- CM200d mobile radio
- One Channel Activated
- Right Angle Antenna or Mag Mount Antenna
- Desktop Cabinet
- Desktop Power Supply
- PMMN4098 Desktop mic
- User’s guide
- Warranty card
DOWNLOADABLE RESOURCES:
• CM SERIES SPEC SHEET
Software and programming cables are available from WSi
MANUFACTURING
SCHOOLS
CONSTRUCTION
TRANSPORTATION & LOGISTICS
COMMERCIAL & FIELD SERVICES
ACCESSORIES
- All
- Audio Accessories
- Programming Accessories
- Antenna
- Control Stations
- Microphone
- Speaker
- Hands Free

HAD4006
(136-144MHz, ¼ wave, Low Profile Roof Mount Antenna)

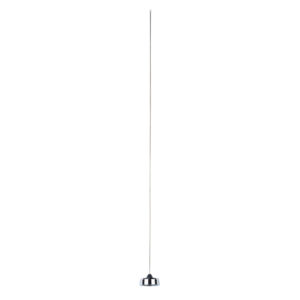

HAD4007
(144-150.8 MHz, ¼ wave, Low Profile Roof Mount Antenna)

HAD4008
(150.8-162 MHz, ¼ wave, Low Profile Roof Mount Antenna)

HAD4009
(162-174 MHz, ¼ wave, Low Profile Roof Mount Antenna)

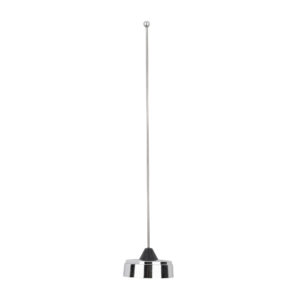

HAE4002
(403-430 MHz, ¼ wave, Low Profile Roof Mount Antenna)

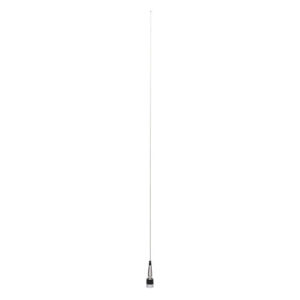

HAD4022
(136-174 MHz, 3dB gain, Though-Hole Mount Antenna)

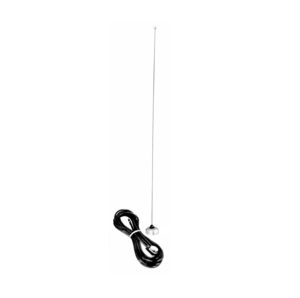

HAE4003
(450-470 MHz, ¼ wave, Low Profile Roof Mount Antenna)

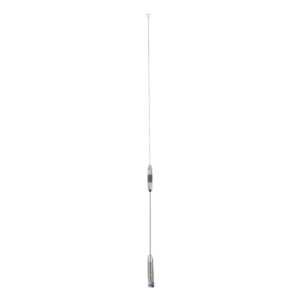

HAE4011
(450-470, 3.5dB gain, Roof Mount Antenna)

HAE6022
(403-527MHz, 2dB gain, Through-Hole Mount Antenna)

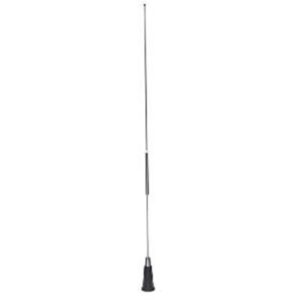

RAE4004AMA
(445-470MHz, 5dB gain wide area through-hole Mount Antenna)

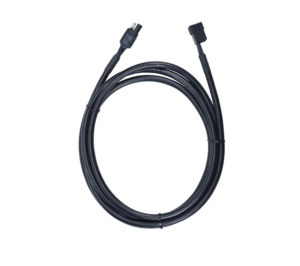

GKN6266
(DC Power Supply Cable (Works with GPN6145 Power Supply))

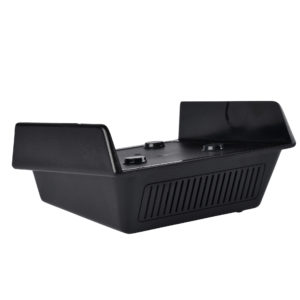

GLN7318
(Desktop Tray without Speaker)

GLN7326
(Desktop Tray with Speaker)

HKN9088
(Mobile Mini-U Antenna Adapter- 8FT Cable)

HLN9457
(Hardware Kit for use with the Expanded Accessory Connector (Includes 16 Connector Pins, Five 8’ Wires and Pins Attached and an Extra Housing))

HPN4007
(Power Supply and Cable (1-60 Watt Models))

GMMN4065
(Visor Microphone (Omni-Direction))

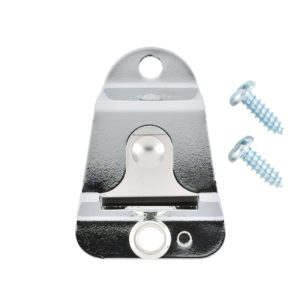

HLN9073
(Microphone Hang-up Clip (Requires Install)

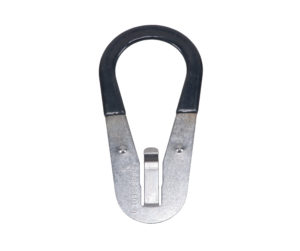

HLN9414
(Microphone Hang-up Clip (Universal- No Install Required))

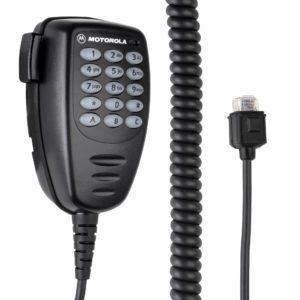

PMMN4089
(Enhanced Keypad Microphone (Alphanumeric Only, Supports Remote Monitor))
